What is Solar Power Conditioning Unit (PCU)
A Solar PCU (Power Conditioning Unit) is a critical component in solar energy systems that combines multiple functions to efficiently manage, and condition power generated by solar panels. It acts as the “brain” of a solar setup, integrating an inverter, charge controller. Here’s a breakdown of its role and importance:
What Does a Solar PCU Do?
- DC-to-AC Conversion (Inverter Function):
Converts the DC (direct current) electricity generated by solar panels into AC (alternating current) for powering household appliances or feeding into the grid. - Battery Charging/Discharging (Charge Controller):
- Manages the charging of batteries using solar power.
- Prevents overcharging (which damages batteries) and optimizes charging stages (bulk, absorption, float).

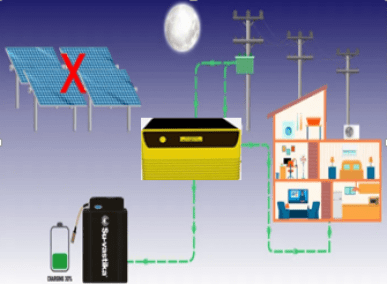

- Discharges stored battery power during low/no sunlight (e.g., nights or cloudy days).

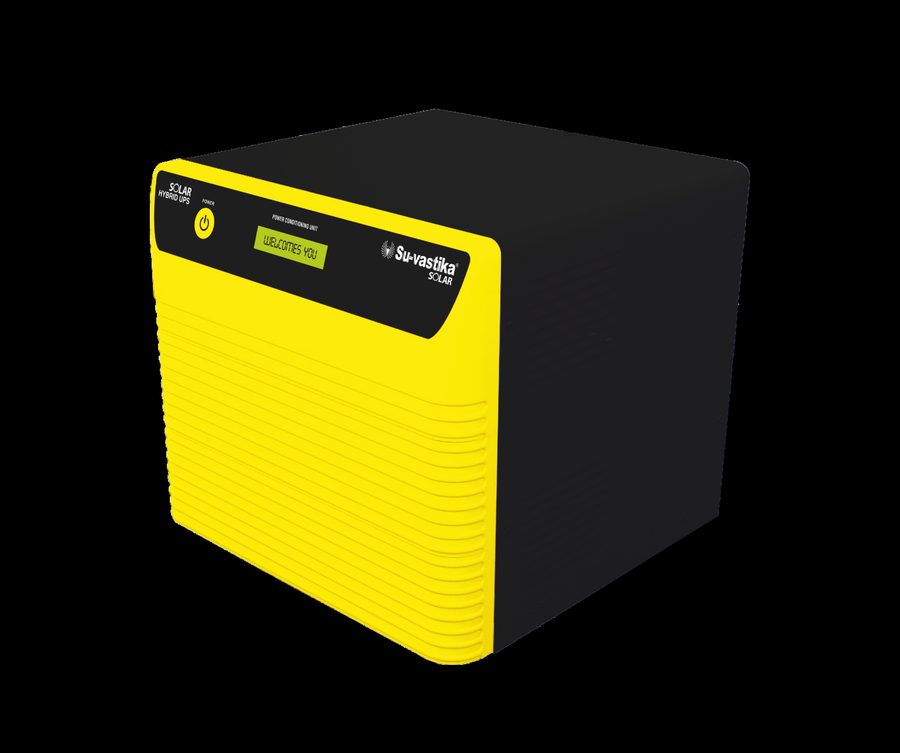

solar PCU with Lithium battery
- Solar Power Optimization (MPPT):
Uses Maximum Power Point Tracking (MPPT) technology to extract the maximum possible energy from solar panels, even under shading or varying weather conditions.Provides backup power during grid outages by switching to battery/solar mode. - System Protection:
- Safeguards against overloads, short circuits, reverse polarity, and voltage fluctuations.
- Ensures safe disconnection during faults (e.g., islanding protection in grid-tied systems).
Key Components of a Solar PCU
- Inverter Module:
Converts DC to AC power with high efficiency (90–98%). - MPPT Charge Controller:
Dynamically adjusts voltage/current to harvest maximum solar energy. - Battery Management System (BMS):
Monitors battery health, state of charge (SOC), and temperature (in advanced models). https://suvastika.com/solar-pcu-the-future-of-home-power-with-bluetooth-and-wi-fi-mobile-application/ -
Effective Monitoring of BMS Cells: Ensuring Safety, Balance, and Performance
- Isolation Transformer:
Provides galvanic isolation for safety and noise reduction (common in high-end PCUs). - Communication Ports:
Enables monitoring via protocols like CAN bus, RS485, Wi-Fi, or Bluetooth.

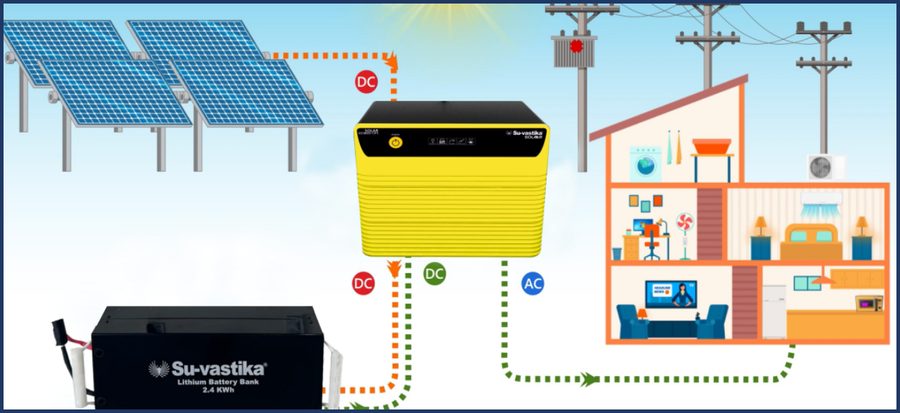

solar PCU monitoring application
Types of Solar PCUs
- Off-Grid PCU:
- Designed for standalone systems (no grid connection).
- Manages solar, battery, and loads independently.
- Hybrid PCU:
- Integrates solar, grid, and battery power.
- Prioritizes solar/battery usage and exports excess to the grid.
- Grid-Tied PCU (Without Battery):
- Directly feeds solar power into the grid.
- No backup capability during outages (depends on grid regulations).
Why is a Solar PCU Important?
- Energy Efficiency:
- MPPT ensures 20–30% more energy harvest compared to basic PWM controllers.
- Minimizes conversion losses (DC→AC→DC in traditional setups).
- Battery Protection:
Extends battery lifespan by preventing overcharge/deep discharge. - Seamless Power Management:
Automatically switches between solar, battery, and grid based on availability. - Scalability:
Supports expansion of solar arrays or battery banks without replacing the entire unit. - Remote Monitoring:
Advanced PCUs allow real-time tracking of energy generation, consumption, and faults via apps.
Applications of Solar PCU
- Residential: Powers homes during outages or off-grid living.
- Commercial: Reduces grid dependency for offices, shops, and hospitals.
- Industrial: Manages heavy loads in factories, telecom towers, or agricultural pumps.
- Rural Electrification: Provides reliable power in remote areas without grid access.
Solar PCU vs. Conventional Inverter
Feature | Solar PCU | Standard Inverter |
---|---|---|
Function | Inverter + Charge Controller + MPPT | Only converts DC→AC |
Battery Support | Built-in battery management | Requires external charge controller |
Efficiency | Optimized for solar (MPPT) | No solar optimization |
Grid Interaction | Hybrid models support grid-tie/backup | Limited to backup (no grid export) |
Key Takeaway
A Solar PCU is essential for modern solar systems to maximize energy harvest, protect batteries, and ensure reliable power supply. It simplifies system design, reduces costs, and future-proofs your investment by integrating critical functions into one intelligent device. For solar beginners, choosing the right PCU (off-grid, hybrid, or grid-tied) is as important as selecting panels or battery in the solar system.
